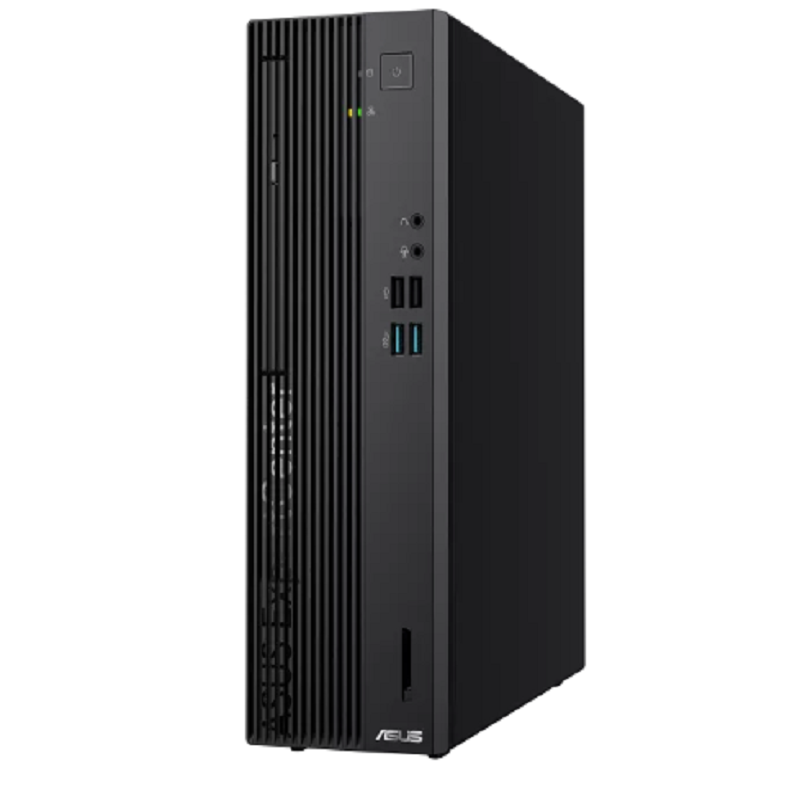

ASUS D501SERES-514500044X INTEL I5-14500 BUSINESS DESKTOP PC 3Y WARRANTY

Sales Model Name

D501SERES-514500044X

EAN Code

UPC Code

WEEE

6

BASE UNIT

VSPF05M1-BU0010

Size

8.6L

Color

Black

Form Factor

Small form factor

Operating System

Windows 11 Pro – ASUS recommends Windows 11 Pro for business

Processor

Intel® Core™ i5-14500 Processor 2.6GHz (24MB Cache, up to 5.0GHz, 14 cores, 20 Threads)
N/A

Chipset

Intel® B760 Chipset

DIMM Memory

16GB DDR5 U-DIMM

Memory Speed

Memory speed is 5600MHz, but run at 4000~4400MHz.

Memory Max.

64GB

Integrated GPU

Intel® UHD Graphics 770

Storage

512 GB M.2 SSD

Optical Drive

Without optical drive

LAN

Intel WGI219V 10/100/1000 Mbps, non-vPro

Audio

High Definition 7.1 Channel Audio

Wireless

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card

Power Supply

330W power supply (80+ Platinum, peak 660W)

Rear I/O Port

1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x 7.1 channel audio (3 ports)
1x Kensington lock
1x Padlock loop
2x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x FLEX I/O port (HDMI 2.1 TMDS)

Front I/O Port

1x Headphone
1x 3.5 mm combo audio jack (Mic in or Headphone out)
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A

Drive Bay

2.5” x 1
3.5” x 1

Serial ATA

4 x SATA 6.0Gb/s ports

Expansion Slot(includes used)

1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1
1x M.2 2230 connector for storage
1x M.2 2280 connector for storage
1x M.2 connector for WiFi
2x DDR5 U-DIMM slot

Dimension (WxDxH)

09.30 x 29.60 x 30.90 cm (3.66” x 11.65” x 12.17”)

Weight

06.00 kg (13.23 lbs)

My ASUS features

System diagnosis
Fan profile
AppDeals

TPM

Trusted Platform Module (TPM) 2.0

Ecolabels & Compliances

EPEAT Gold
Energy star 8.0
REACH
RoHS

Base Warranty

3 Year
